    Implementing Undirected Graphs in Python

    There are 2 popular ways of representing an undirected graph.

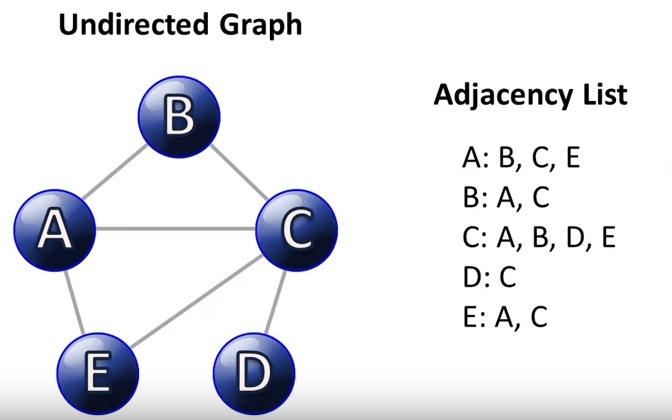

    Adjacency List
    Each list describes the set of neighbors of a vertex in the graph.

    adjacencyList

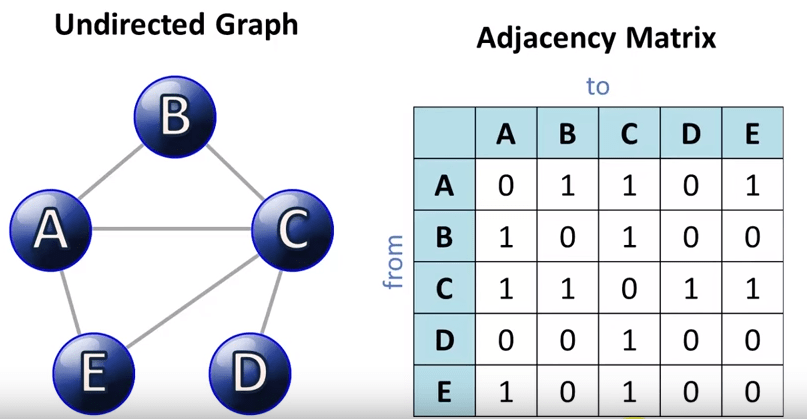

    Adjacency Matrix
    The elements of the matrix indicate whether pairs of vertices are adjacent or not in the graph.

    adjacencyMatrix

    Here’s an implementation of the above in Python:

    class Vertex:
    def __init__(self, vertex):
    self.name = vertex
    self.neighbors = []
    def add_neighbor(self, neighbor):
    if isinstance(neighbor, Vertex):
    if neighbor.name not in self.neighbors:
    self.neighbors.append(neighbor.name)
    neighbor.neighbors.append(self.name)
    self.neighbors = sorted(self.neighbors)
    neighbor.neighbors = sorted(neighbor.neighbors)
    else:
    return False
    def add_neighbors(self, neighbors):
    for neighbor in neighbors:
    if isinstance(neighbor, Vertex):
    if neighbor.name not in self.neighbors:
    self.neighbors.append(neighbor.name)
    neighbor.neighbors.append(self.name)
    self.neighbors = sorted(self.neighbors)
    neighbor.neighbors = sorted(neighbor.neighbors)
    else:
    return False
    def __repr__(self):
    return str(self.neighbors)
    class Graph:
    def __init__(self):
    self.vertices = {}
    def add_vertex(self, vertex):
    if isinstance(vertex, Vertex):
    self.vertices[vertex.name] = vertex.neighbors
    def add_vertices(self, vertices):
    for vertex in vertices:
    if isinstance(vertex, Vertex):
    self.vertices[vertex.name] = vertex.neighbors
    def add_edge(self, vertex_from, vertex_to):
    if isinstance(vertex_from, Vertex) and isinstance(vertex_to, Vertex):
    vertex_from.add_neighbor(vertex_to)
    if isinstance(vertex_from, Vertex) and isinstance(vertex_to, Vertex):
    self.vertices[vertex_from.name] = vertex_from.neighbors
    self.vertices[vertex_to.name] = vertex_to.neighbors
    def add_edges(self, edges):
    for edge in edges:
    self.add_edge(edge[0],edge[1])
    def adjacencyList(self):
    if len(self.vertices) >= 1:
    return [str(key) + ":" + str(self.vertices[key]) for key in self.vertices.keys()]
    else:
    return dict()
    def adjacencyMatrix(self):
    if len(self.vertices) >= 1:
    self.vertex_names = sorted(g.vertices.keys())
    self.vertex_indices = dict(zip(self.vertex_names, range(len(self.vertex_names))))
    import numpy as np
    self.adjacency_matrix = np.zeros(shape=(len(self.vertices),len(self.vertices)))
    for i in range(len(self.vertex_names)):
    for j in range(i, len(self.vertices)):
    for el in g.vertices[self.vertex_names[i]]:
    j = g.vertex_indices[el]
    self.adjacency_matrix[i,j] = 1
    return self.adjacency_matrix
    else:
    return dict()
    def graph(g):
    """ Function to print a graph as adjacency list and adjacency matrix. """
    return str(g.adjacencyList()) + '\n' + '\n' + str(g.adjacencyMatrix())
    ###################################################################################
    a = Vertex('A')
    b = Vertex('B')
    c = Vertex('C')
    d = Vertex('D')
    e = Vertex('E')
    a.add_neighbors([b,c,e])
    b.add_neighbors([a,c])
    c.add_neighbors([b,d,a,e])
    d.add_neighbor(c)
    e.add_neighbors([a,c])
    g = Graph()
    print(graph(g))
    print()
    g.add_vertices([a,b,c,d,e])
    g.add_edge(b,d)
    print(graph(g))
    view raw graphUndirected.py hosted with ❤ by GitHub

    Output:

    {}
    {}
    ["A:['B', 'C', 'E']", "C:['A', 'B', 'D', 'E']", "B:['A', 'C', 'D']", "E:['A', 'C']", "D:['B', 'C']"]
    [[ 0. 1. 1. 0. 1.]
    [ 1. 0. 1. 1. 0.]
    [ 1. 1. 0. 1. 1.]
    [ 0. 1. 1. 0. 0.]
    [ 1. 0. 1. 0. 0.]]
    view raw graphUndirected_output.txt hosted with ❤ by GitHub
